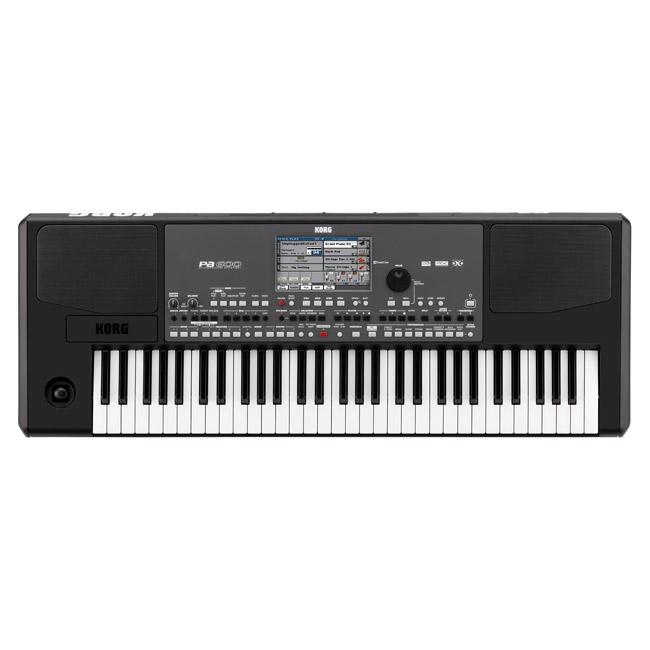

Model
   Pa600 - Standard



Keyboard
    61 keys with Velocity



Sounds
Factory:
    More than 950 (including Stereo Piano and GM 2 Sounds)
    64 Drum Kits

User:
    256 Sounds
    128 Drum Kits

Tone Generator:
    128 Oscillators (max polyphony 128 voices) - Filters with Resonance

PCM User Memory:
    96 MB

Effects & EQ:
    4 Stereo Master FX / 125 Effects types
    Three band EQ for each track - Articulations
    Limiter - Master 4 band Parametric EQ

Others:
    Dynamic Nuance Control (DNC) Technology
    Full editing of Sounds and Drum Kits
    Realtime sound control using assignable Switches

Controllers:
Joystick - 2 Assignable Switches


Styles
Factory:
    More than 360 preloaded Styles, freely reconfigurable

User:
    Up to 1,200 available Style locations including the Favorite/User banks

Structure:
    Eight Style tracks, 4 Single Touch Settings and one Style Performance per Style

Style controls:
    3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Autofill, Synchro Start/Stop, Tap Tempo/Reset, Manual Bass, Bass Inversion, Memory, Accompaniment Mute, Snare & Kick Designation, STS Mode - Chord Sequencer

Others:
    Guitar Mode 2, Parallel and Fixed NTT, Style Record with Step Record, Track and Event Edit functions

Performance/STS
    320 Realtime Performance locations
    STS: Memorize Realtime tracks
    Up to 4 x Styles, up to 4 x SongBook entries
    My Setting special Performance

Realtime Tracks
    Four Keyboard tracks (Upper 1, 2, 3, Lower)


Pads

    4 Pad tracks + Stop button - Pad Record

Song Play
    Single Player with Select, Start/Stop, Home, Rewind and Fast Forward controls
    Jukebox function - Compatible with SMF (formats 0 and 1) and MP3 with Vocal Remover - Lyrics (compatible with CDG), Score, Marker



Display
    7" 800 x 480 TFT Graphical Color TouchView



Sequencer
    Quick Record (Backing Sequence), Multitrack and Step Record functions
    Full featured sequencer - 16 tracks - Up to 100.000 events - SMF format



Song Book
    Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes - User-definable custom lists - Filtering options



Search
    Style, Song, Performance, SongBook, Sound and Lyrics TXT



Compatibility for Sound Data
    "i-Series": Styles only
    "Pa series": Style, Performance, Sound, PCM, Song, SongBook and Pad



General Controls
    Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble, Octave Transpose, Master Transpose, Fade In/Out, Tempo Lock, Style Change - Quarter Tone Arabic Scale, User Scale memorized inside Performance/STS, Search, Lyrics, Score, Maker, Dial, Tempo, Metronome, Split



Connections
Control Inputs:
    Damper Pedal, Assignable Pedal/Footswitch

Line Out:
    Unbalanced Jack Left/Mono, Right, Headphones

Line In:
    2 Unbalanced Line In Jacks

MIDI:
    In, Out Midi connectors - USB to Midi using the USB Device port
    Individual track assignment - 8 user definable MIDI Preset

USB:
    Type A (TO DEVICE) x 1: 2.0 Hi Speed
    Type B (TO HOST) x 1: 2.0 Hi Speed



Speaker System
Amplification:
    15W x 2

Speakers:
    100 mm x 2 Double Cone Speakers in Bass Reflex Box


Power
Power Supply:
    AC 100-240 V

Power Consumption:
    20 Watt


Dimensions (W x D x H)
    1,030 x 378 x 127 mm without music rest



Weight
    11 kg



Accessories
    Owner's Manual, Music Stand, Accessory DVD (It includes Video Manuals), AC Cable



Options
    Expression/Volume Pedal (KORG EXP-2, KORG XVP-10)
    Damper Pedal (KORG DS-1H)
    Switch Pedal (KORG PS-1, PS-3)


Specifications and appearance are subject to change without notice for improvement.
