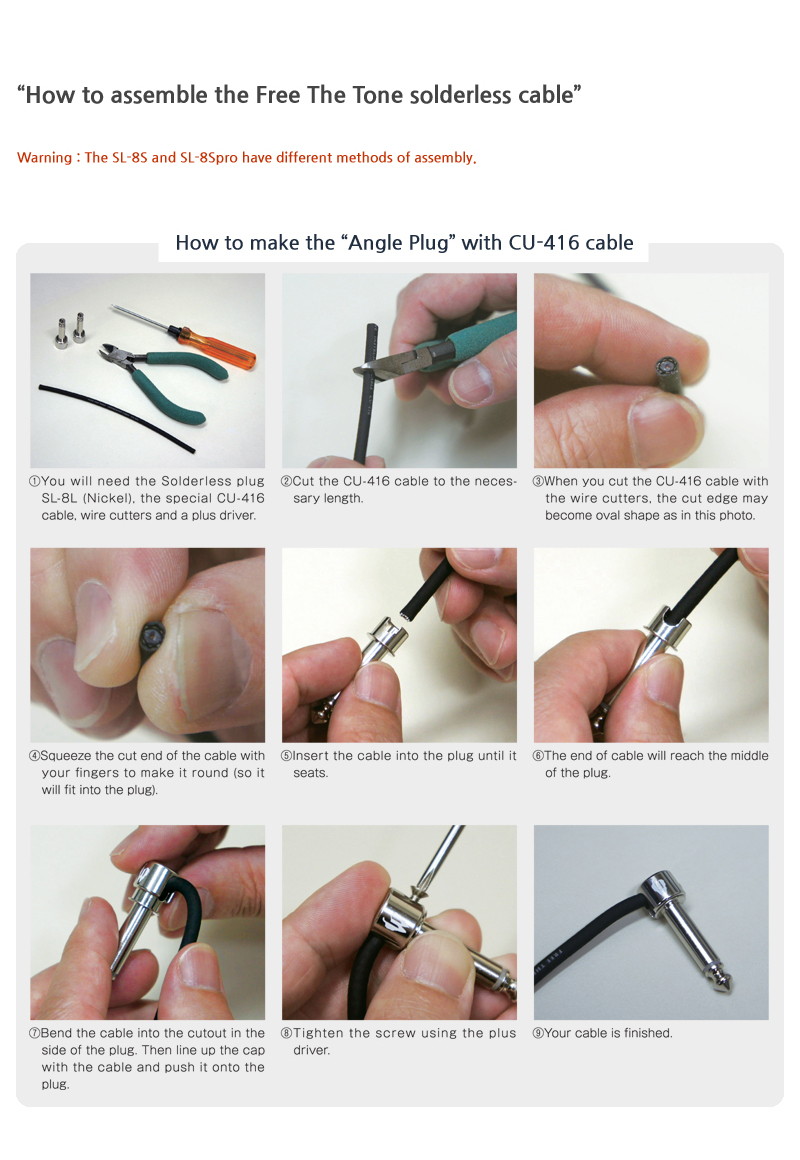

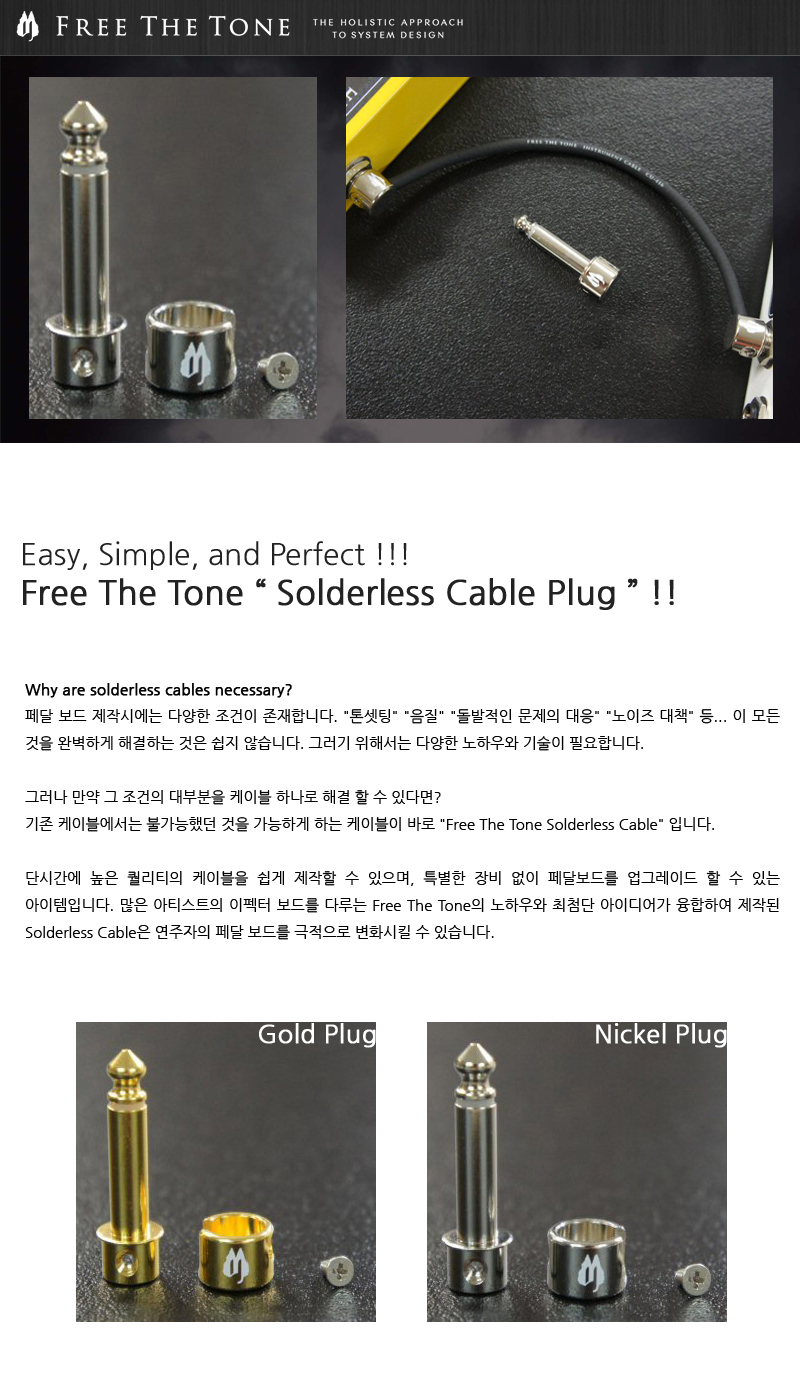

FREE THE TONE THE HOLISTIC APPROACH TO SYSTEM DESIGN FREE THE YONE INSTRUMENT CARE Easy, Simple, and Perfect!!!! Free The Tone “Solderless Cable Plug"!! Why are solderless cables necessary? 페달 보드 제작시에는 다양한 조건이 존재합니다. "톤셋팅" "음질" "돌발적인 문제의 대응" "노이즈 대책" 등... 이 모든 것을 완벽하게 해결하는 것은 쉽지 않습니다. 그러기 위해서는 다양한 노하우와 기술이 필요합니다. 그러나 만약 그 조건의 대부분을 케이블 하나로 해결 할 수 있다면? 기존 케이블에서는 불가능했던 것을 가능하게 하는 케이블이 바로 "Free The Tone Solderless Cable" 입니다. 단시간에 높은 퀄리티의 케이블을 쉽게 제작할 수 있으며, 특별한 장비 없이 페달보드를 업그레이드 할 수 있는 아이템입니다. 많은 아티스트의 이펙터 보드를 다루는 Free The Tone의 노하우와 최첨단 아이디어가 융합하여 제작된 Solderless Cable은 연주자의 페달 보드를 극적으로 변화시킬 수 있습니다. Gold Plug Nickel Plug "How to assemble the Free The Tone solderless cable" Warning: The SL-8S and SL-8Spro have different methods of assembly. How to make the "Angle Plug" with CU-416 cable You will need the Solderless plug SL-8L (Nickel), the special CU-416 cable, wire cutters and a plus driver. Cut the CU-416 cable to the neces- ③When you cut the CU-416 cable with sary length. the wire cutters, the cut edge may become oval shape as in this photo. @Squeeze the cut end of the cable with your fingers to make it round (so it will fit into the plug). Insert the cable into the plug until it ⑥The end of cable will reach the middle seats. of the plug. Bend the cable into the cutout in the side of the plug. Then line up the cap with the cable and push it onto the plug. Tighten the screw using the plus Your cable is finished. driver. S/N 501A1281 DC9V S/N 7184430 DCW IN 1-OUT-R MOVIN "Free The Tone makes some amazing cables - if you want the best signal path for your rig." Kenny Wayne Shepherd CU-6550LNG FREE TH SLK-S-10 (Nickel) Tonequest MUSICAL INSTRUMENTS FREE THE TONE was independently established for the purposes of realizing progressive new development and design based on the innovative concepts of Yuki Hayashi, after separating from Pacifix Ltd, where he was responsible for developing and manufacturing Providence Effects. We will be creating new products and designing advanced systems for guitarists/bassists based on Yuki's long career supporting professional musicians in Japan. We hope to help musicians improve their performance and aim to develop trouble-free products by getting to know more about how musicians use the products in live performance or recording situations. Also, instead of focusing on single components, we will approach the entire system design in a compre- hensive way, which embodies the meaning of our slogan "THE HOLISTIC APPROACH TO SYSTEM DESIGN". MEMBERS NOTES FREE THE TONE, LTD THE HOLISTIC APPROACH TO SYSTEM DESIGN Origin of the company name FREE THE TONE FREE THE TONE was conceived by Pete and Lynda Cornish based on the desire to "Free the Tone" from noise, interface, and any other impediments to music performance. Pete Cornish is known worldwide for his custom products devel- oped for some of the best-known names in the music business, including Jimmy Page, David Gilmour, Paul McCartney, Eric Clapton and Sting. Lynda has been
