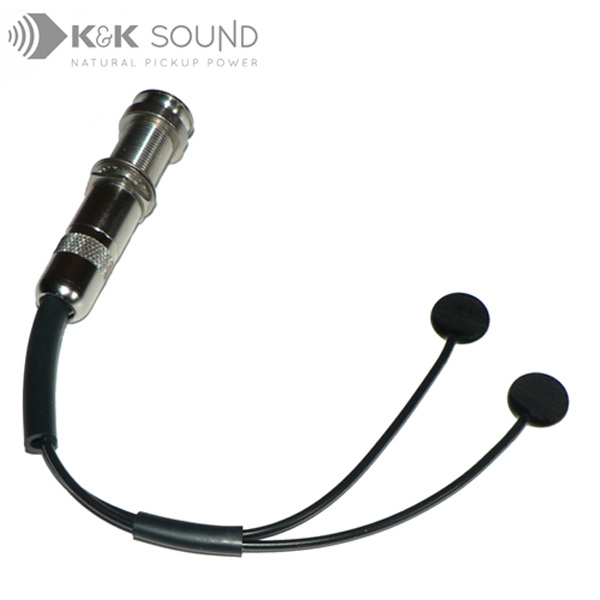

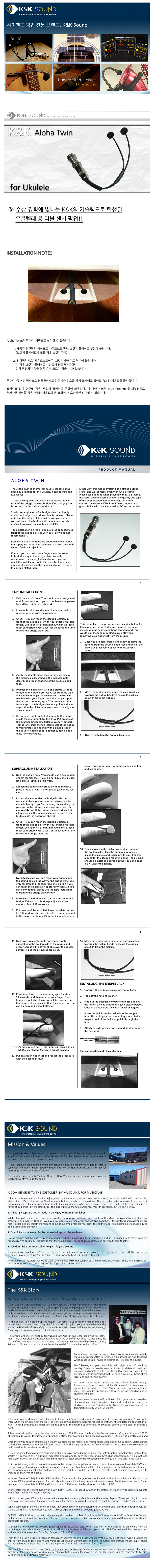

K&K SOUND Handcrafted pickups. Pure sound. 하이엔드 픽업 전문 브랜드, K&K Sound Handcrafted pickups. NATURAL PICKUP POWER K&K Aloha Twin for Ukulele Pure sound. PURE XLR PREAMP ≫ 수상 경력에 빛나는 K&K의 기술력으로 탄생된 우쿨렐레 용 더블 센서 픽업!! INSTALLATION NOTES Aloha Twin은 두 가지 방법으로 설치할 수 있습니다: 1. 제공된 양면접착 테이프로 사운드보드안쪽, 브릿지 플레이트 부분에 붙입니다. (브릿지 플레이트가 없을 경우 브릿지쪽에) 2. 강력접착제로 사운드보드안쪽, 브릿지 플레이트 부분에 붙입니다. 이 경우 브릿지 플레이트는 반드시 평평하여야합니다. 만약 평평하지 않을 경우 음이 고르지 않을 수 가 있습니다. 두 가지 중 어떤 방식으로 장착하더라도 강한 출력신호를 가져 프리엠프 없이도 충분한 사운드를 들려줍니다. 프리엠프 없이 연주할 경우, 픽업의 퀄리티와 품질에 좌우되며, 더 나아가 외부 Pure Preamp 를 외부장치로 추가사용 하였을 경우 깨끗한 사운드와 톤 조절에 더 효과적인 선택일 수 있습니다. PRODUCT MANUAL ALOHA TWIN The Aloha Twin is an internal double-sensor pickup specially designed for the Ukulele. It can be installed two ways: 1. With the supplied double-sided adhesive tape in front of the bridge plate (or bridge, if no bridge plate is present) on the inside sound board. 2. With superglue on a flat bridge plate (or directly under the bridge, if no bridge plate is present). Please note that the bridge plate must be completely flat - it will not work if the bridge plate is radiused, which means it is curved up, e.g. Mele Ukuleles. Tape installation on the bridge plate (as opposed to in front of the bridge plate) is very quiet so we do not recommend it. Both installation methods are about equally loud but the superglue mount has the most balanced tone with superb feedback rejection. Check if you can reach your fingers into the sound hole all the way to the bridge plate. We only recommend the superglue installation if you can reach the installation spots fairly easily. If you have any doubts, please use the tape installation in front of the bridge plate/bridge. Either way, this pickup system has a strong output signal and works nicely even without a preamp. Please keep in mind when playing without a preamp, the result depends somewhat on the quality and type of the amplification equipment. For more tone control, the external K&K Pure Preamp would be a great choice with its clean musical EQ and small size. TAPE INSTALLATION 1. Drill the endpin hole. You should use a designated endpin reamer tool. If you do not have one, please let a skilled luthier do this work. 2. Loosen the stings and spread them apart with a piece of rope or with masking tape. 3. Check if you can reach the desired location in front of the bridge plate with your index or middle finger. Use your left or right hand, whichever feels most comfortable. Get a feel for the location of the braces, the bridge plate, etc. This is similar to the procedure we describe below for the superglue mount but here you must use tape instead of glue as it would bond too tight and you would pull the tape-mounted pickup off when removing your finger cot from the pickup. 7. Once you are comfortable and ready, remove the backing from the double-sided tape and install the pickup as practiced. Repeat with the second pickup. 4. Apply the double-sided tape to the gold side of

상세 이미지의 글자를 옮긴 것입니다. 정확한 내용은 상세 이미지를 확인해 주세요.
