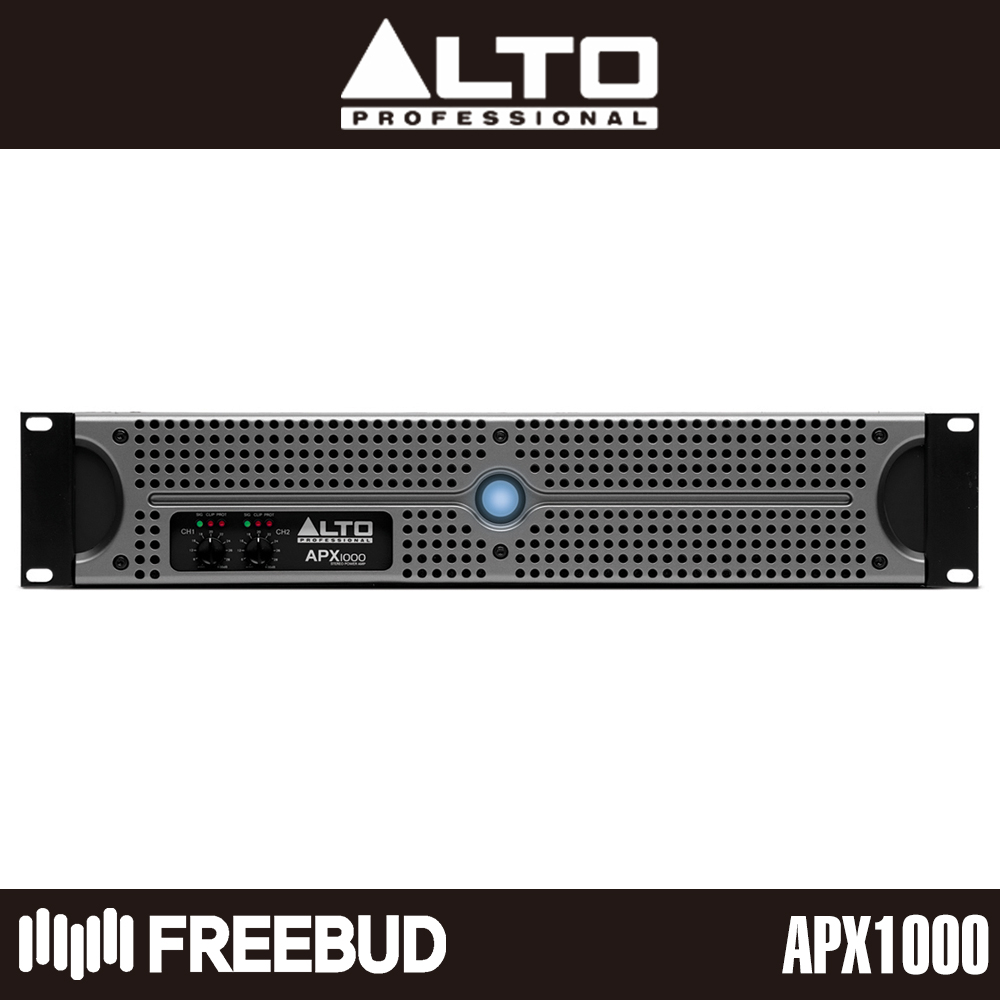

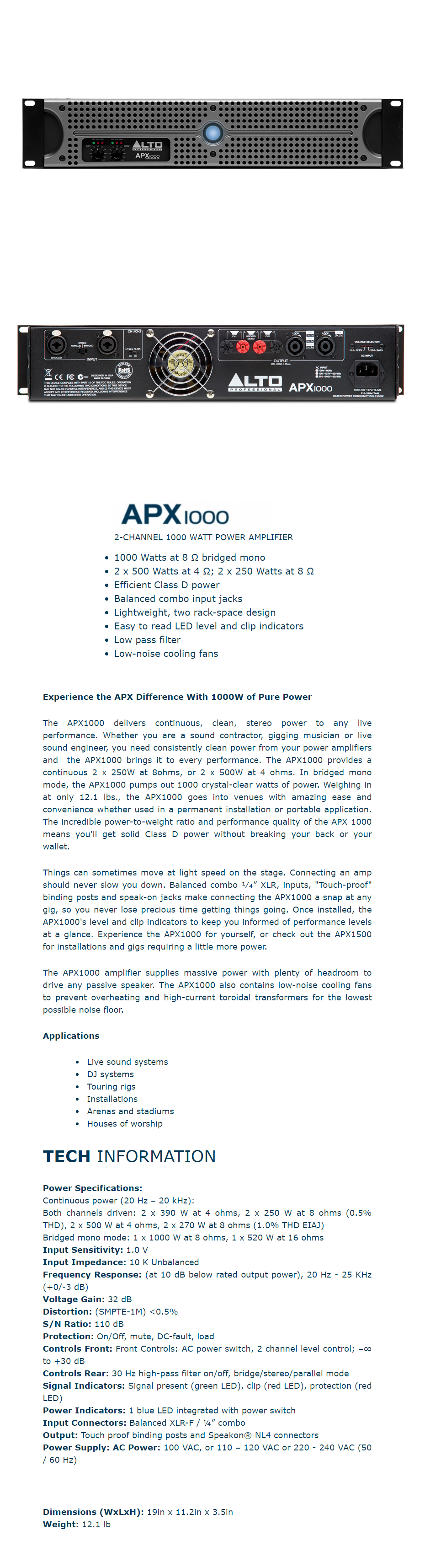

INPUT ALTO PROFESIONAL APX1000 CHICHE LF 30G FILTER -OUTPUT RoHS THIS DEVICE COMPLIES WITH PART 15 OF THE FOC RULES OPERATION SUBJECT TO THE FOLLOWING TWO CONDITIONS THIS DEVICE MAY NOT CAUSE HA RIOVERIENCE, AND DOES DAVE S THAT MAY CALE UNDESIRED OPERATION PROFESSIONAL 2-CHANNEL 1000 WATT POWER AMPLIFIER 1000 Watts at 8 2 bridged mono • 2 x 500 Watts at 4 2; 2 x 250 Watts at 8 .Efficient Class D power Balanced combo input jacks Lightweight, two rack-space design Easy to read LED level and clip indicators • Low pass filter • Low-noise cooling fans VOLTAGE SELECTOR 110-127 210-240V AC INPUT TUSE 100-127V/TESAL 210-240VTAL RATED POWER CONSUMPTION 1500W Experience the APX Difference With 1000W of Pure Power The APX1000 delivers continuous, clean, stereo power to any live performance. Whether you are a sound contractor, gigging musician or live sound engineer, you need consistently clean power from your power amplifiers and the APX1000 brings it to every performance. The APX1000 provides a continuous 2 x 250W at 8ohms, or 2 x 500W at 4 ohms. In bridged mono mode, the APX1000 pumps out 1000 crystal-clear watts of power. Weighing in at only 12.1 lbs., the APX1000 goes into venues with amazing ease and convenience whether used in a permanent installation or portable application. The incredible power-to-weight ratio and performance quality of the APX 1000 means you'll get solid Class D power without breaking your back or your wallet. Things can sometimes move at light speed on the stage. Connecting an amp should never slow you down. Balanced combo 1/4" XLR, inputs, "Touch-proof" binding posts and speak-on jacks make connecting the APX1000 a snap at any gig, so you never lose precious time getting things going. Once installed, the APX1000's level and clip indicators to keep you informed of performance levels at a glance. Experience the APX1000 for yourself, or check out the APX1500 for installations and gigs requiring a little more power. The APX1000 amplifier supplies massive power with plenty of headroom to drive any passive speaker. The APX1000 also contains low-noise cooling fans to prevent overheating and high-current toroidal transformers for the lowest possible noise floor. Applications Live sound systems DJ systems • Touring rigs Installations Arenas and stadiums Houses of worship TECH INFORMATION Power Specifications: Continuous power (20 Hz - 20 kHz): Both channels driven: 2 x 390 W at 4 ohms, 2 x 250 W at 8 ohms (0.5% THD), 2 x 500 W at 4 ohms, 2 x 270 W at 8 ohms (1.0% THD EIAJ) Bridged mono mode: 1 x 1000 W at 8 ohms, 1 x 520 W at 16 ohms Input Sensitivity: 1.0 V S/N Ratio: 110 dB Input Impedance: 10 K Unbalanced Frequency Response: (at 10 dB below rated output power), 20 Hz - 25 KHz (+0/-3 dB) Voltage Gain: 32 dB Distortion: (SMPTE-1M) Protection: On/Off, mute, DC-fault, load Controls Front: Front Controls: AC power switch, 2 channel level control; -∞ to +30 dB Controls Rear: 30 Hz high-pass filter on/off, bridge/stereo/parallel mode

상세 이미지의 글자를 옮긴 것입니다. 정확한 내용은 상세 이미지를 확인해 주세요.
