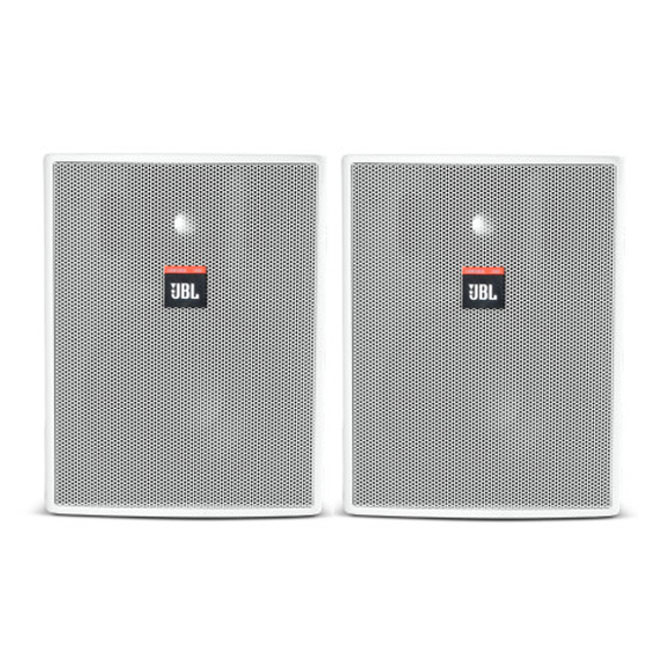

About JBL PROFESSIONAL HARMAN 지난 60여년간 음악과 영화, 방송 산업에 걸쳐 독보적인 명성을 얻어온 JBL Professional은 오늘날 공연장, 스튜디오, 경기장, 교회에 이르기까지 다양한 영역에서 최고의 사운드를 만들어 왔습니다. 현재도 JBL Pro 스피커는 많은 뮤지션들과 함께 문화를 창조해 나가고 있습니다. Control 25AV Surface-Mount Speakers CONTROL CONSTRACTOR SERIES ULTRA-COMPACT, HIGH OUTPUT, PREMIUM INDOOR/OUTDOOR & BACKGROUND/FOREGROUND SPEAKER Control 23-1/25-1/25AV/28-1/29AV-1 PROFESSIONAL SERIES - SHIELDED INDOOR/OUTDOOR MONITOR SPEAKER KEY FEATURES Video shielded for use near video monitors Extremely smooth frequency response Stainless steel grille for harsh environments 60W transformer for 70V or 100V lines, with 80 thru SonicGuard TM overload protection •130 mm (54) polypropylene coated woofer, 10 mm (34") titanium coated horn-loaded tweeter • Includes InvisiBall mounting hardware and sealed input panel cover Screw-down input terminals 100° x 100° high frequency horn DESCRIPTION The Control 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker. Premium performance capability and even coverage ensures excellent sound quality throughout the listening area. Magnetic shielding allows use of the speaker in close proximity to video monitors. The top-quality transformer, with reduced saturation, allows use on either 70 volt or 100 volt distributed speaker lines, with similar performance fidelity. In the bypass position, the high 80 impedance allows use of more speakers on a loudspeaker line. The unique, global patent pending InvisiBallmounting method is simple to install, aims easily, and provides a high degree of theft deterrence. The cabinet accepts a variety of paints to match any décor. Weather resistance is maximized by a stainless steel grille, which is paintable. Coating the woofer in polypropylene and terminating its circumference in JBL's WeatherEdge TM, a seamless, butyl rubber extension of the woofer surround, protects critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance. Nickel/zinc rust-resistant terminals ensure a secure input connection. JBL's exclusive SonicGuard overload protection is virtually inaudible to the listener, ensuring reliability while providing full fidelity sound. The Control 25AV can be used full range or low frequencies can be further augmented with the addition of one of the Control Contractor subwoofer models. Available in black or white (-WH). Physical Enclosure Material SPECIFICATIONS System Frequency Range (-10 dB) 70 Hz-23 KHz Midrange (±1.5 dB, typical 100 Hr Power Capacity Nominal Coverage Nominal Sensitivity Nominal Coverage Maximum SPL @ 1m 130 Hz-14 kHz 200W Continuous Program Power 100W Continuous Pink Noise 100° x 100° 87 dB SPL, 1W @ 1m (3.3ft) 100° x 100 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech Grille Environmental Termination

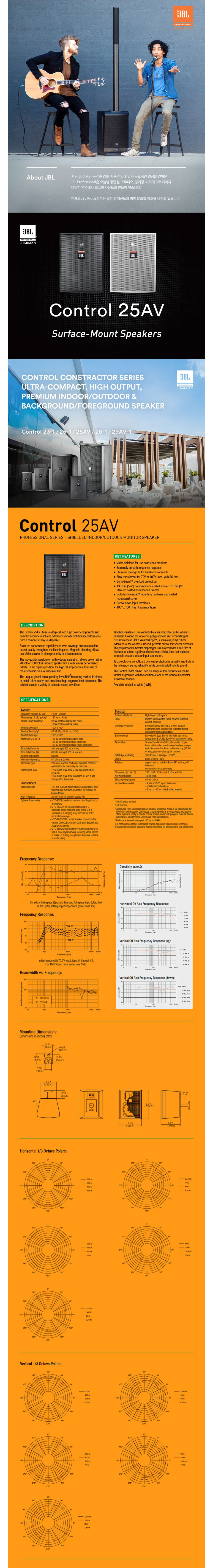

상세 이미지의 글자를 옮긴 것입니다. 정확한 내용은 상세 이미지를 확인해 주세요.
