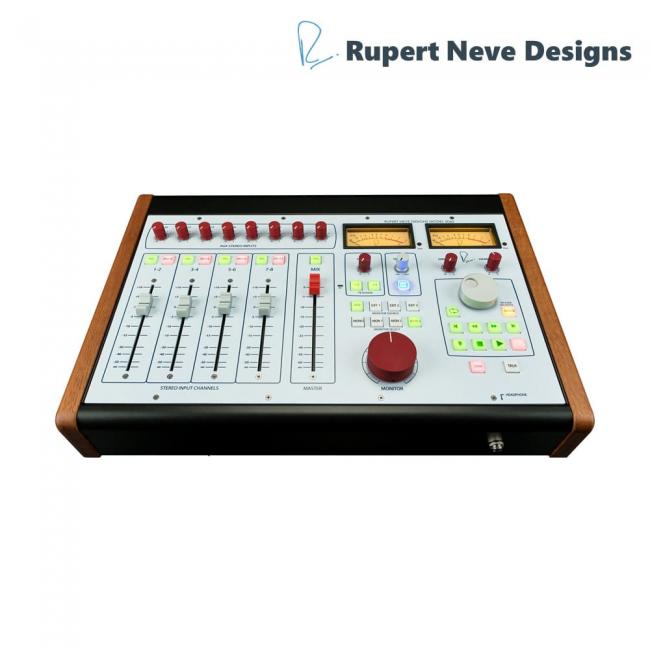

MUTE AUX STEREO INPUTS TB ASSIGN RUPERT NEVE DESIGNS MODEL 5060 EXT 1 EXT 3 MONITOR SOURCE MONO MON MON: MON 3 MONITOR SELECT STEREO INPUT CHANNELS MASTER MONITOR HEAD TALK HEADPHONE From the father of the recording console comes the 5060 Centerpiece: the Class-A analog heart of your 21st-century studio. Sized for your desktop, the 5060 delivers the tonality and center section features of Rupert's flagship 5088 console at your fingertips, cementing outboard together with serious custom transformers, flexible monitoring, DAW transport controls, and the raw power of a Rupert Neve-designed 24×2 mix-buss. Define Your Workflow With a modular, hybrid analogue/digital mix system built around the 5060, you can outfit your studio with exactly what you need - and nothing that you don't (see configurations guide here). Utilizing modern DAW control technologies, the 5060 seamlessly integrates stem outputs from the DAW with the rest of your control room, sums the final mix, and provides 2-track outputs, source selection, and speaker feed outputs from the monitor section. Used in conjunction with 5059 mixers and Portico modules, the 5060 forms the core of a scalable analogue system. In this arrangement, the 5059s provide individual channel control, aux routing, and expandable channel counts, the Portico modules provide preamplification, EQ and dynamics, and the 5060 unites it all. The 5060 brings your dreams of a seamless hybrid workflow to reality. 8 active stereo inputs with rotary faders for stem and aux inputs Stereo Channel Inserts Passive stereo insert send/return with always active send signal Stereo Channel Mutes Mutes the signal on on the - Stereo Channel Faders 100mm Fader determines the level of the 4 main stereo input channels. Faders can be either stereo or center-panned mono from the left input Master Stereo Insert Transofrmer coupled insert, with always active send. Engaging the insert button selects the insert return signal Master Stereo Fader Determines the level of the master stereo buss signal Toggles between Silk Red, Sik Blue & no Silk Talkback Level / Assign/Mic Controls the level for the talkback mic to the talkback output, and assigns the output to monitor out 1-2 & 3-4 Silk Monitor Speaker Select Selects which speaker output active. By holding the Mon 3 button, the Mon 3 outs will remain on with both Mon 1 & 2 for use with subwoofers or speakers in the cutting room Texture Determines the amount of Silk effect, when Silk is engaged DODO GODO Monitor Level L/R Meters & Poak Indicators VU Meters Display the RMS signal level of the selected monitor source and the peak indicator illuminates red when the peak threshold has been exceeded Sets the amount of monitor signal reduction that occurs when the Dim button is depressed Headphone Level Controls the level of the headphone output Shuttle/Jog Wheel Used to control either scrub or shuttle functions in the DAW Transport Controls Control the standard transport functions of DAWs t through Midi

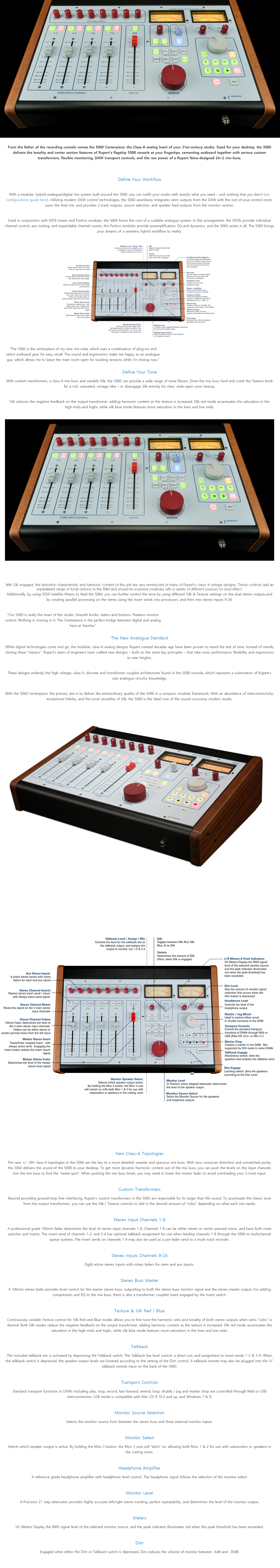

상세 이미지의 글자를 옮긴 것입니다. 정확한 내용은 상세 이미지를 확인해 주세요.
