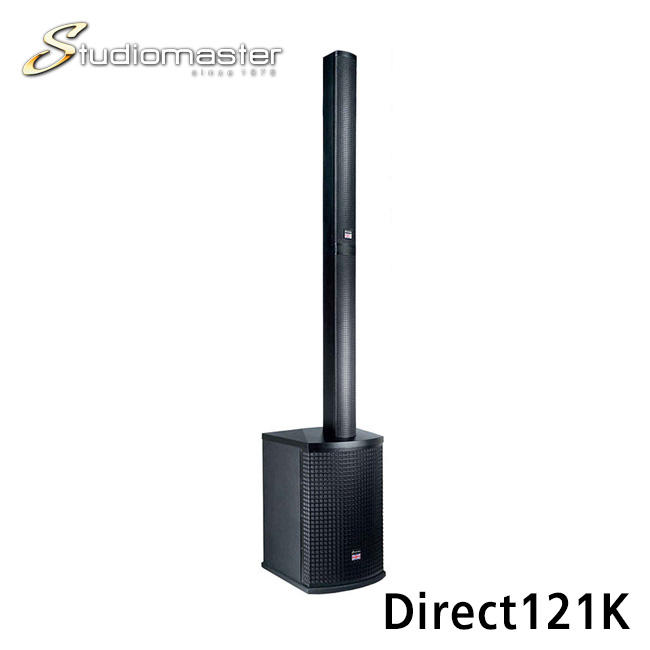

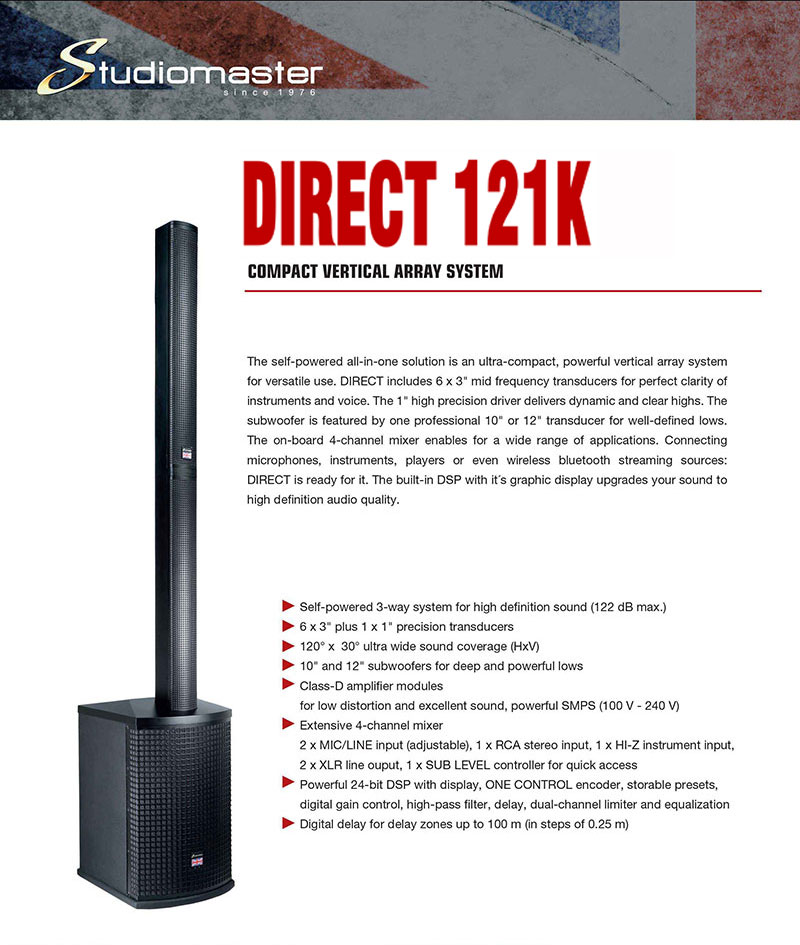

Studiomaster DIRECT 121K COMPACT VERTICAL ARRAY SYSTEM The self-powered all-in-one solution is an ultra-compact, powerful vertical array system for versatile use. DIRECT includes 6 x 3" mid frequency transducers for perfect clarity of instruments and voice. The 1" high precision driver delivers dynamic and clear highs. The subwoofer is featured by one professional 10" or 12" transducer for well-defined lows. The on-board 4-channel mixer enables for a wide range of applications. Connecting microphones, instruments, players or even wireless bluetooth streaming sources: DIRECT is ready for it. The built-in DSP with it's graphic display upgrades your sound to high definition audio quality. Self-powered 3-way system for high definition sound (122 dB max.) 6 x 3" plus 1 x 1" precision transducers 120° x 30° ultra wide sound coverage (HxV) 10" and 12" subwoofers for deep and powerful lows Class-D amplifier modules for low distortion and excellent sound, powerful SMPS (100V - 240 V) Extensive 4-channel mixer 2 x MIC/LINE input (adjustable), 1 x RCA stereo input, 1 x HI-Z instrument input, 2 x XLR line ouput, 1 x SUB LEVEL controller for quick access Powerful 24-bit DSP with display, ONE CONTROL encoder, storable presets, digital gain control, high-pass filter, delay, dual-channel limiter and equalization Digital delay for delay zones up to 100 m (in steps of 0.25 m) VERTICAL ARRAY Speaker 6 x 3" mid-range speaker Coverage (HxV) Rated Impedance Dimensions (WxHxD) Net Weight (kg) 1 x 1" compression driver 120° x 30° 6 Ohms 106 x 803 x 125mm 4.2 kg Plug & Play The whole system features internal automatic connections. Set up within seconds. 3" mid frequency transducers. 1" high frequency precision driver. 120°x30° Advanced coverage (HxV) to reach the whole audience. POWERED 12" SUBWOOFERS WITH 4-CHANNEL ANALOG MIXER DIRECT 121K Analog Mixer Play music with bluetooth connection Inputs 4 channels (2x Mic/Line, 1xRCA, 1xHi-Z) Input connectors 1-2#: XLR/6.35mm jack combo 3#: 6.35mm jack unbalanced TRS 4#: 2x RCA jack (stereo) Input impedance 1-2# MIC: 40k Ohms balanced 1-2# LINE: 10k Ohms balanced 3#: 20k Ohms unbalanced 4#: 5k Ohms unbalanced Output connector 1-2#: Line Link: XLR 3#: Mix out: XLR DIRECT 121K Subwoofer Speaker type 1 x 12" transducer Power Frequency range DSP conncection 2400W 20 Hz - 20 kHz 24 bit (1in-2out) 374 x 666 x 465mm 22.5 kg Attachment Suteron Protective bag Protective cover Outline 제품 스펙 DIRECT-121K Powered subwoofer with a line array speaker Type Mixing channels 4(3 mono + 1ST) inputs 3 mono mic/line + 1stereo line 2x balanced XLR/1/4" *(6.3mm) combo jack, 1x Hi-Z instrument jack, 2x Rca/cinch Bluetooth audio stream 2 Link out, 1 Mix out Mixing capability MAX input level +4 dBu Outputs Bluetooth Power rating Max, SPL peak calculated Frequency range (+/-10db) Amp Type Overall system height Gross Weight General specifications Speaker type High/Mid Unit HF drive Mid speaker Horn directivity Dimensions (W x H x D) Weight Subwoofer

상세 이미지의 글자를 옮긴 것입니다. 정확한 내용은 상세 이미지를 확인해 주세요.
