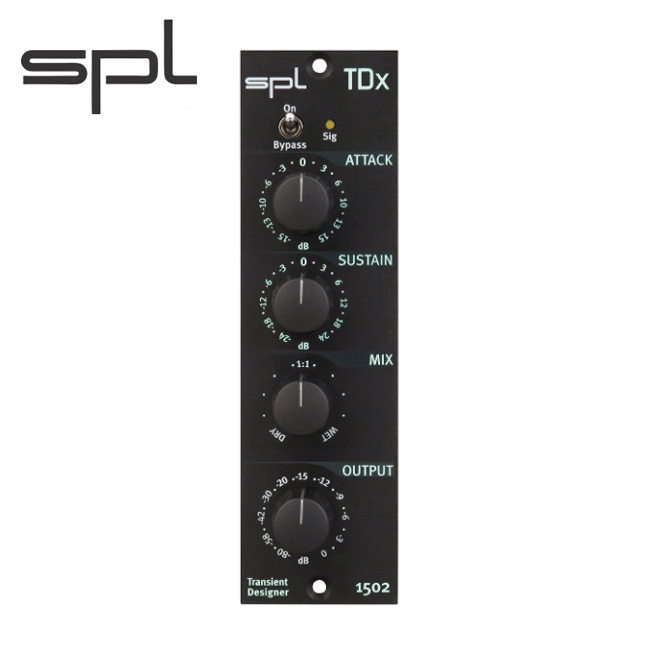

New Product 2016 TDx 개요 spl TDX Bypass ATTACK 30SUSTAIN 30-15-12 OUTPUT Transient Designer Transient Designer 500 Series module SUSTAIN 1502 TDx는 싱글 슬롯 500 시리즈 랙 모듈로 확장된 트랜션트 디자이너 회로 입니다. TDx Transient Designer는 SPL의 Differenial Envelope 기술을 활용하여 레벨을 독립적으로 모든 사운드의 ATTACK 및 SUSTAIN 특성을 제어함으로써 레코딩시 향상된 파워를 제공합니다. TDX는 기능의 범위가 더욱 확장되었고 ATTACK/ SUSTAIN/MIX 기능을 조작하기 쉽게 설계되었습니다. •Extended original Transient Designer circuitry. •A: Parallel MIX control - blend between "Wet" and "Dry" • ATTACK: amplify or attenuate attacks • SUSTAIN: Prolong or shorten sustain • Differential Envelope Technology (DET) Output level control ⚫ON/Bypass switch • Signal LED Single-Slot 500 series rack module • Made in Germany 상세 내용 Applications The Transient Designer is ideally suited for use in professional recording, project or home studios and in sound reinforcement applications. Applied to single instruments or loops the Transient Designer allows you to create entirely new sounds and/or effects. The following examples are given as suggestions and examples. You will find more examples in the manual. The described procedures with specific instruments can of course be transferred to others which are not mentioned here. Drums & Percussions Processing drum and percussion sounds is probably the Transient Designer's most typical range of application, both from samples to live drum sets: Emphasize the attack of a kick drum or a loop to increase the power and presence in the mix by increasing ATTACK. Drums Ambience If your drums happen to sound as if the room mics have been placed in a shoe closet, the Transient Designer can immediately turn that sound into the ambience of an empty warehouse. Just send the room mic through the Transient Designer module and crank the ATTACK control to emphasize the first wave.Now slowly increase SUSTAIN values to bring up an "all-buttons-in- 1176-sound" room tone-but without pumping cymbals. Bass: Staccato vs, Legato Speaking of bass: Imagine a too sluggishly played bass track... you may not have to re-record it: Reduce the SUSTAIN until you can hear clear gaps between the downbeats-the legato will turn into a nice staccato, driving the rhythm-section forward. 제품 사양 Input: ⚫ Balanced Impedance: 20kOhm • Max. Input level: +22 dBu Output: • Impedance: 150 Ohm • Max. Output Level: +22 dBu Frequency Range: 10Hz-100kHz Noise: -93 dBu (A-weighted) Dynamic Range: 116 dB CMRR: -80 dBu (at 1 kHz, 0 dBu input level, unity gain) THD: 0,03% (at 0 dBu input level, unity gain) Housing: Single Slot 500er-Serie rack modul Weight: 0,65 kg /1.43 lbs OdBu = 0,775V. Specifications subject to change without notice.

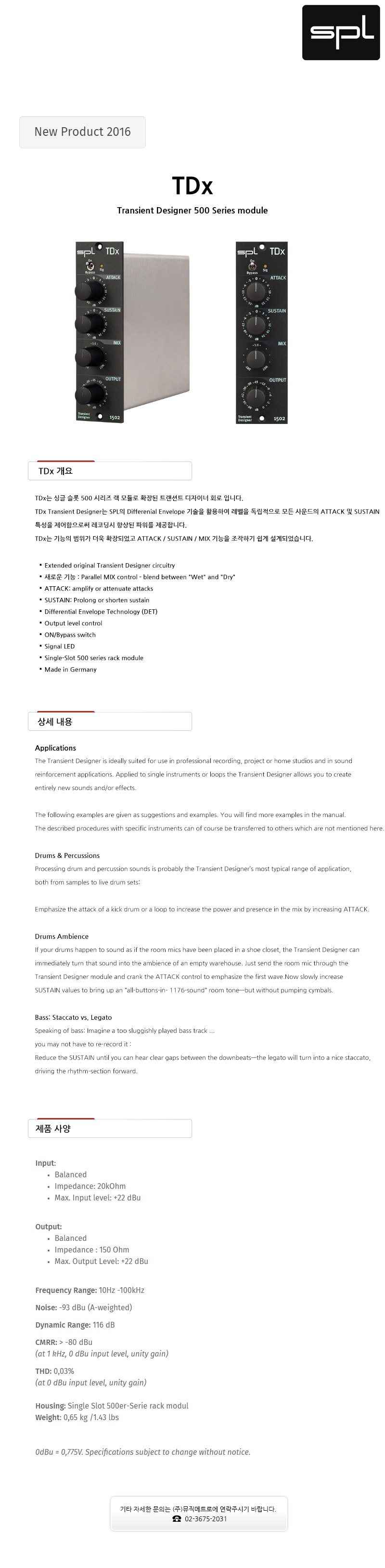

상세 이미지의 글자를 옮긴 것입니다. 정확한 내용은 상세 이미지를 확인해 주세요.
