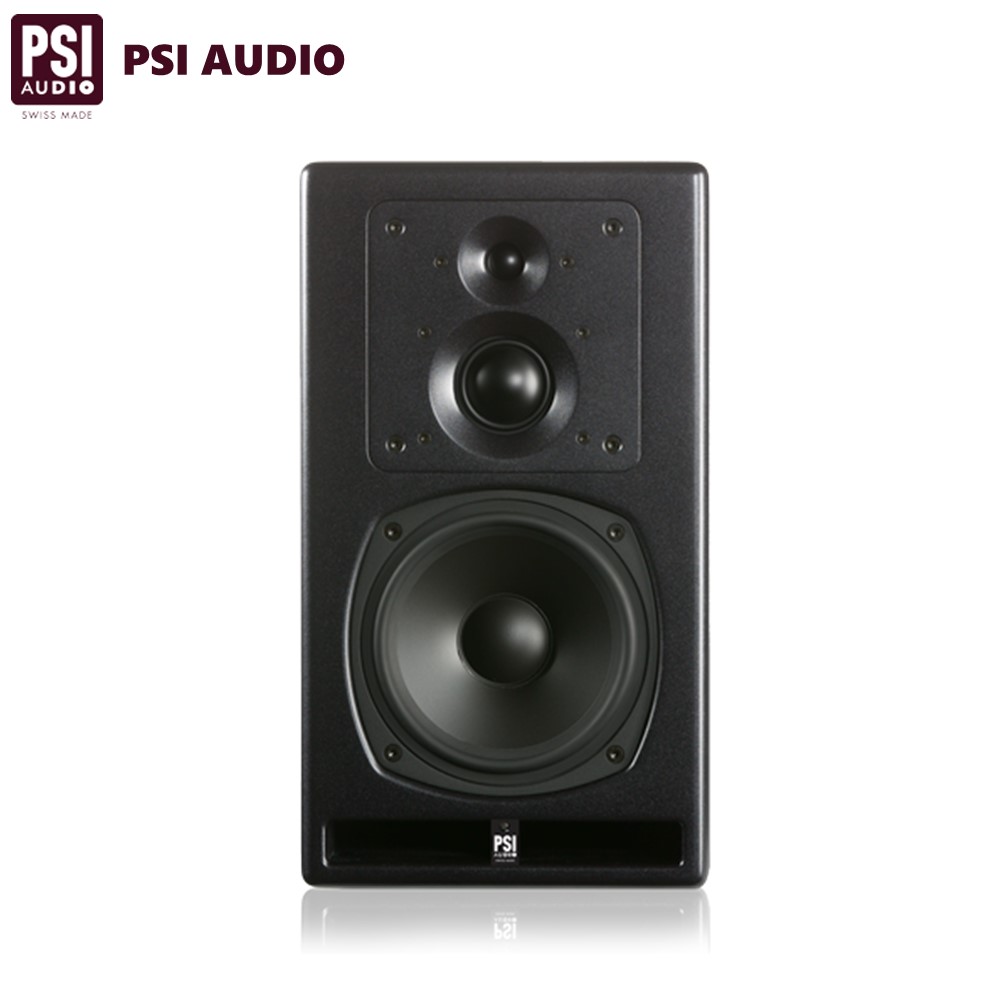

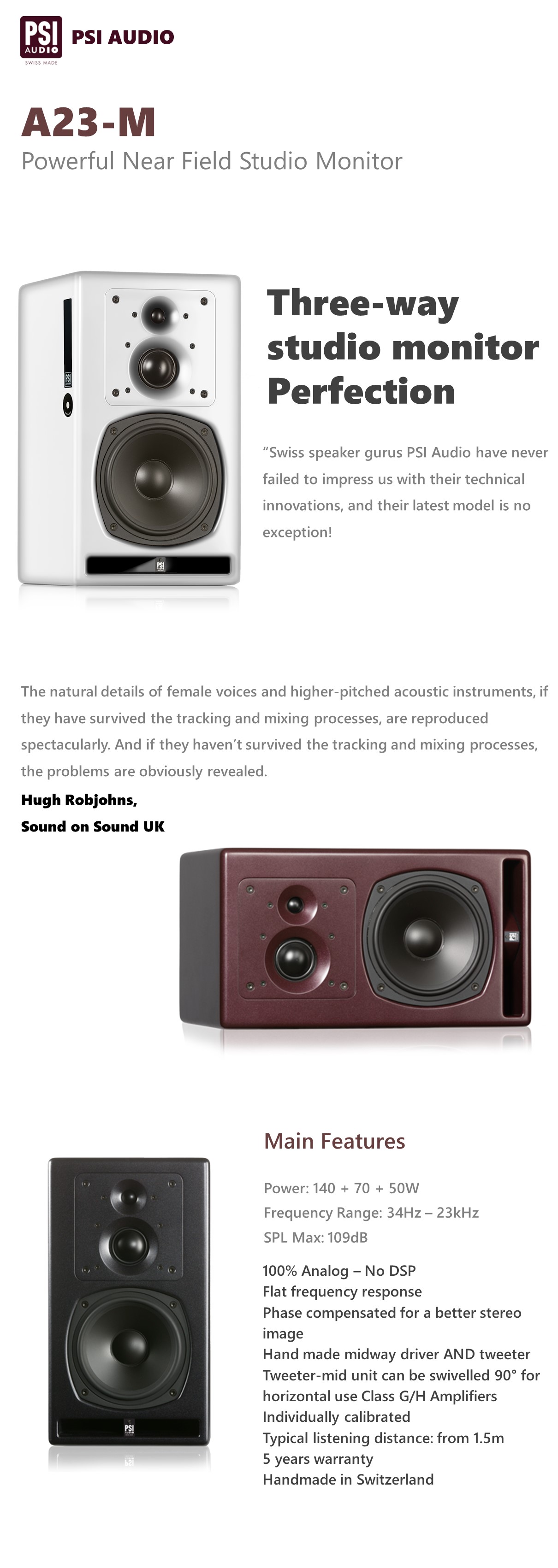

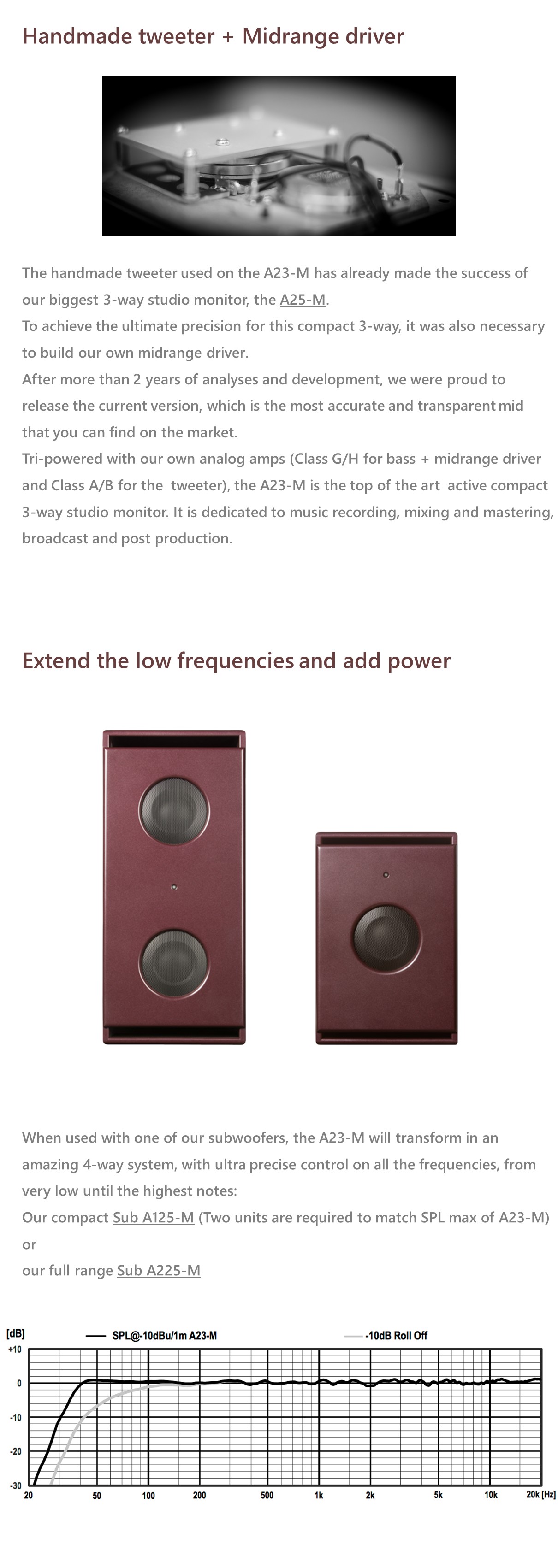

PSI PSI AUDIO AUDIO SWISS MADE A23-M Powerful Near Field Studio Monitor Three-way studio monitor Perfection "Swiss speaker gurus PSI Audio have never failed to impress us with their technical innovations, and their latest model is no exception! The natural details of female voices and higher-pitched acoustic instruments, if they have survived the tracking and mixing processes, are reproduced spectacularly. And if they haven't survived the tracking and mixing processes, the problems are obviously revealed. Hugh Robjohns, Sound on Sound UK Main Features Power: 140 + 70 + 50W Frequency Range: 34Hz - 23kHz SPL Max: 109dB 100% Analog - No DSP Flat frequency response Phase compensated for a better stereo image Hand made midway driver AND tweeter Tweeter-mid unit can be swivelled 90° for horizontal use Class G/H Amplifiers Individually calibrated Typical listening distance: from 1.5m 5 years warranty Handmade in Switzerland Handmade tweeter + Midrange driver The handmade tweeter used on the A23-M has already made the success of our biggest 3-way studio monitor, the A25-M. To achieve the ultimate precision for this compact 3-way, it was also necessary to build our own midrange driver. After more than 2 years of analyses and development, we were proud to release the current version, which is the most accurate and transparent mid that you can find on the market. Tri-powered with our own analog amps (Class G/H for bass + midrange driver and Class A/B for the tweeter), the A23-M is the top of the art active compact 3-way studio monitor. It is dedicated to music recording, mixing and mastering, broadcast and post production. Extend the low frequencies and add power When used with one of our subwoofers, the A23-M will transform in an amazing 4-way system, with ultra precise control on all the frequencies, from very low until the highest notes: Our compact Sub A125-M (Two units are required to match SPL max of A23-M) our full range Sub A225-M SPL@-10dBu/1m A23-M -10dB Roll Off 100 200 20k [Hz] A17-M- The perfect compact sized 3-way The A23-M is PSI Audio's new member. It is a compact 3-way mid-field active studio monitor with staggering precision and amazing stereo image. X Cat The dynamic behavior, precision frequency and phase responses have made of the A23-M a true reference in the entire industry. Specifications Product: Power RMS: Program Power: Input Impedance: Sensivity for 100 dB @ 1m: Self-generated noise, 1m f-s Continuous Max SPL@1m: Input Overload: Program Max SPL@1m: Response at -6dB: Tolerances: Distortion THD: Phase tolerances: Paxk Dispersion (P.N. 4 - 16 kHz) at -6 dB: System: Crossover frequency: Woofer's dim. Ext. / Diaphragm: Medium's dim. Ext. / Diaphragm: Tweeter's dim. Ext. / Diaphragm: Connectors: Signal input: Material: Dimensions W x H x D mm: Gross/Net Weight: Voltage: 140 + 70 + 50 W 300 W Sym, 10k Ohms 0.775 V 8 dBA 109 dB 24 Vpp 120 dB (pair) / 123 dB peak 34 23000 Hz +1.5 dB (39Hz-20kHz) less than 1% (100Hz-20kHz)
